KB-M1
SECURITY SYSTEM
PRODUCTS
Innovative Technology | Reliable Quality | End-to-End Service

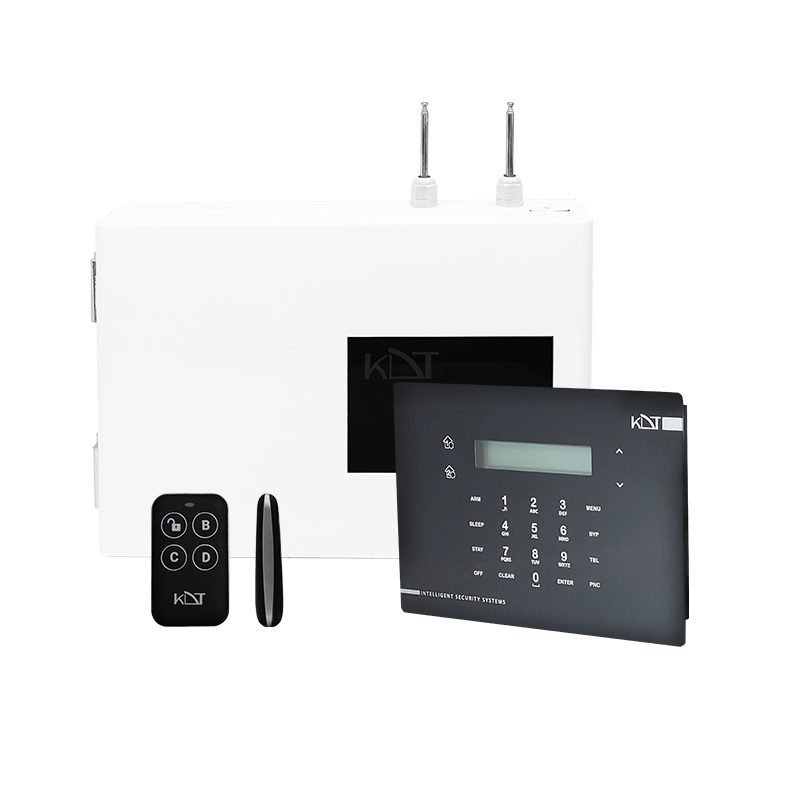

سیستم های امنیتی کی دی تی مدل KB-M1
قابلیت های برتر:
- تعریف دو ناحیه به صورت مجزا
- پشتیبانی از ۳۲ منطقه بی سیم
- پشتیبانی از ۳۲ منطقه با سیم
- قابلیت ثبت ۶ شماره تماس
- ریموت کدگذاری شده (hopping code)
- دارای پنل تنظیمات لمسی
- قابلیت افزودن ماژول های (PoE, Zone, PGM, Repeter, Sim card)
- تعریف وضعیت مختلف برای مناطق
- تعریف رویدادهای مختلف برای فعال یا غیرفعال سازی PGM
KB-M1
SECURITY SYSTEM
- RS485 (4 wire Communication bus)
- 4 open collector (up to 6 open collector + 8 relay)
- 12 (Close Zone – Open Zone – Pressed remote key – …)
- Advanced Encryption Standard
- 80 Meter outdoor
| Supply | |
| Input voltage | 15.5 Vdc |
| Power | 30W |
| Battery | Li/Yon 18650 – 3cell, 6cell |
| Battery Charger | Yes |
| Power Management | Yes |
| Electrical Protection | Over Voltage / Over Current |
| Interface | |
| Keypad Connection | RS485 (4 wire Communication bus) |
| SIM Card | Single |
| GPRS | 2G |
| GSM | Call / SMS |
| Audio Socket | 2.5mm |
| Feature Hardware | |
| User | 32 |
| Remote | 32 |
| Wire Zone | 8 (up to 16) |
| 315Mhz Wireless Zone | 24 (up to 32) |
| PGM | 4 open collector (up to 6 open collector + 8 relay) |
| Phone Number | 6 |
| Siren | Yes |
| SD Card Socket | Yes |
| Feature Software | |
| Zone Mode | 15 (Entry Delay – Exit Delay – …) |
| PGM Event | 12 (Close Zone – Open Zone – Pressed remote key – …) |
| Arming Level | 3 (Full – Sleep – Stay) |
| Zone Bypass | Yes |
| Keypad | |
| Panel | Touch |
| Display | 2 X 16 Character LCD |
| Buzzer | Yes |
| Keypad Wire Zone | 1 |
| Remote | |
| Frequency | 433 MHz |
| Encryption | Advanced Encryption Standard |
| Coding | KeeLoq |
| Antenna | Onboard |
| Battery | 27A (12v) |
| Coverage | 80 Meter outdoor |
| General | |
| IP Rating | IP44 |
| Web Language | English / Persian |
| Dimension | 295*210*63 mm |
| Weight | 3.1 kg |
| Storage Temp | -20°C ~ +65°C / 10% ~ 90% RH |
| Operation Temp | -15°C ~ +55°C / 10% ~ 90% RH |
| Radiation Electromagnetic | EN55016 |
| Guarantee | |
| Telecommunication | Yes |
| POE & Ethernet | Yes |
| RF Repeater | Yes |
| PGM Expansion | Yes |
| Zone Expansion | Yes |
| RTC | Yes |
